It was announced by Apple on March 2, and first available in the United States on March 11, The iPad 2 features both front and rear facing cameras, and comes in both while and black. It features multi-touch interaction with print, video, photo, and audio multimedia, internet browsing, and runs most iPhone OS apps. The device has an LED-backlit 9. Select a Language: Help Translate iFixit. Create a Guide I Have This. Do you know which kind you have?


  1. samsung galaxy s3 akku lädt nicht mehr voll.
  2. Introduction.
  3. x-ray scanner for nokia 5800 free.

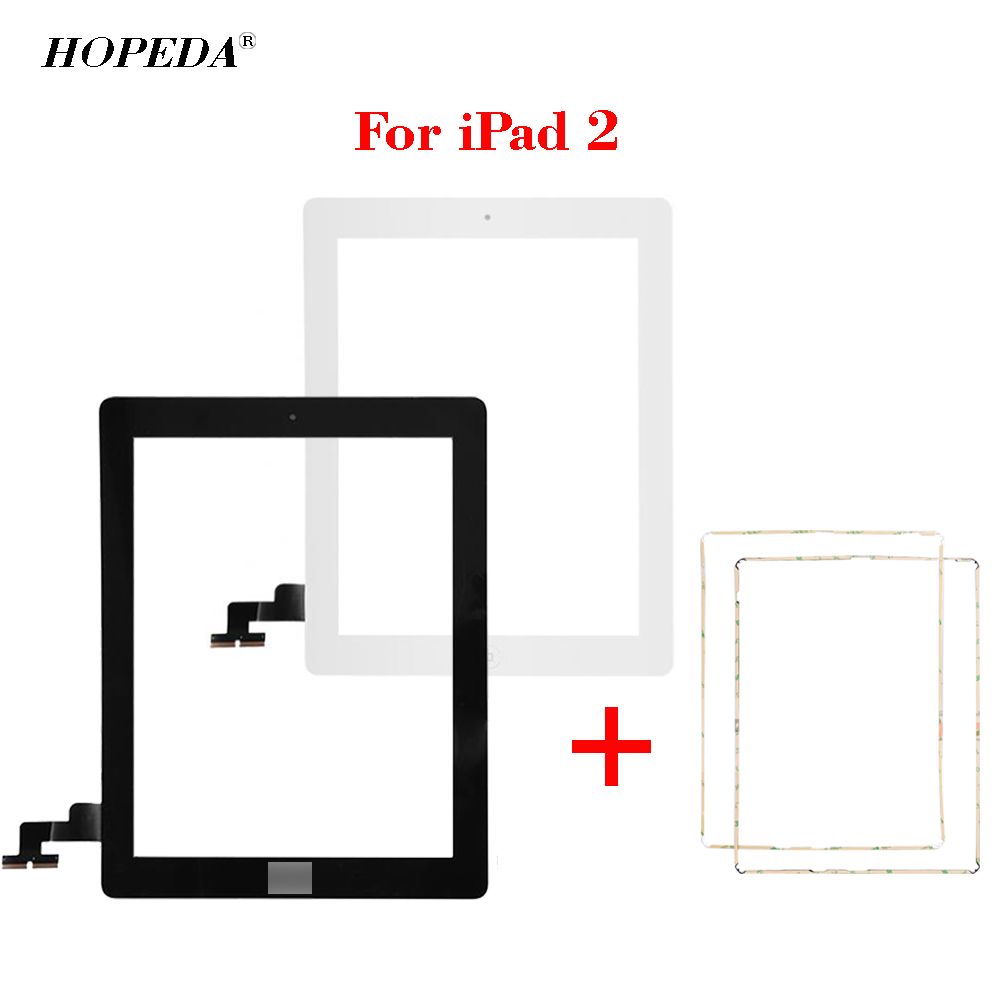

  4. White Screen Glass Digitizer Replacement A1395 A1397 A1396 for iPad 2.
  5. fallout shelter windows phone release date.
  6. samsung galaxy flash player 10.1;
  7. add ringtone apple iphone 4.

Featured Guides. Replacement Guides Battery. Display Data Cable. Dock Connector. Front Facing Camera. Front Panel. Front Panel Adhesive Strips. Slide the tip of the opening pick along the bottom edge of the iPad, releasing the adhesive over the Wi-Fi antenna. Once you have moved past the Wi-FI antenna approximately 3" 75 mm from the right edge, or right next to the home button re-insert the opening pick to its full depth. Slide the pick to the right, releasing the adhesive securing the Wi-Fi antenna to the front glass.

The antenna is attached to the bottom of the iPad via screws and a cable.

Покупки по категориям

This step detaches the antenna from the front panel, ensuring that when you remove the panel, the antenna will not be damaged. If the adhesive has cooled too much along the bottom edge, reheat the iOpener to warm the adhesive where you are working. Do not heat the iOpener more than a minute at a time, and always allow at least two minutes before reheating it. Reheat the iOpener in the microwave and set it on the left edge of the iPad to start warming the adhesive in that section. Slide the opening pick along the top edge of the iPad, pulling it out slightly to go around the front-facing camera bracket.

The adhesive along this section is very thick, and a fair amount of force may be required. Work carefully and slowly, making sure to not slip and damage yourself or your iPad. If the adhesive has cooled too much, replace the iOpener along the top edge and continue working. If the iOpener has cooled too much, reheat it. If the opening pick is getting stuck in the adhesive, "roll" the pick as shown in step 9. Continue releasing the adhesive along the top edge of the iPad, and slide the opening pick around the top left corner. If the adhesive is warm enough, remove the iOpener from the iPad for convenience.

However, if the adhesive is still quite sticky, re-heat the iOpener and lay it on the left edge while you work. Slide the opening pick along the left edge of the iPad, releasing the adhesive as you go. The adhesive is thin here due to the digitizer along the whole left side. The digitizer cable is located approximately 2" 50 mm from the bottom of the iPad.

Using the opening pick that is still underneath the bottom edge of the iPad, release the adhesive along the bottom left corner. Work carefully and slowly, making sure to not sever this cable. Using one of the opening picks, pry up the bottom right corner of the iPad and grab it with your fingers. Some of the adhesive along the perimeter of the iPad may have stuck back down again.

If this is the case, slide a pick underneath the edge of the iPad where the front glass is still stuck and "cut" the adhesive. Holding the iPad by the top and bottom right corners, rotate the front glass away from the iPad. Be careful of any adhesive that may still be attached, and use an opening pick to cut any adhesive that may still be holding the front panel down. The bottom left screw is obscured by the home button ribbon cable connector. Carefully move the home button ribbon cable aside to remove the bottom left screw. Using a plastic opening tool or a spudger, lift the right edge of the LCD out of the iPad.

Rotate the LCD along its left edge and lay it down on top of the front glass panel. Be careful as you move the LCD. The ribbon cable is fragile and may break if it is flexed too much. Using the tip of a spudger, peel back the piece of tape covering the LCD ribbon cable connector.

Using your fingers or a pair of tweezers, pull the LCD ribbon cable from its socket on the logic board. You may have to force restart the iPad by holding down the power button and home button for at least ten seconds until you see the Apple logo if the LCD screen doesn't power on after connecting the ZIF connector for the LCD screen when putting everything back together. If present, remove the piece of electrical tape covering the Wi-Fi antenna, speaker cable, and home button ribbon cable.

Use a pair of tweezers to pull the home button ribbon cable straight out of its socket on the logic board. Using the tip of a spudger, peel back the piece of tape that secures the digitizer ribbon cable to the logic board.

Flip up the retaining flap on both of the digitizer ribbon cable ZIF connectors. Use the flat end of a spudger to loosen the adhesive underneath the digitizer ribbon cable.

Peel back the digitizer ribbon cable and use the flat end of a spudger to release the adhesive securing the cable to the rear aluminum case. Using your fingers, pull the digitizer ribbon cable out of its recess in the aluminum frame. The home button assembly is attached to the front panel with some adhesive. The use of an iOpener to soften the adhesive is highly recommended. Place the iOpener in the microwave and microwave it for one minute on the highest power setting or just thirty seconds if you're using the newer gel-filled iOpener.

Be careful not to overheat the iOpener during the repair procedure. Note the orientation for reassembly. The mechanical switch will also need to mate with this button cover; ensure that they properly interlock.

654,13 RUB

Use the tip of a spudger to push the volume rocker into the interior of the rear case. Carefully peel the volume rocker portion of the button cable away from the rear case. Do not remove the cable entirely, the cable is still attached by a connector taped to the upper component board. Remove the single 2 mm Phillips screw from the lower end of the upper component board. Use a set of tweezers to remove the foam block from between the rear case and the upper component board.

iPad Air 2 Wi-Fi Home Button Assembly Replacement - iFixit Repair Guide

Insert a spudger under the end of the upper component board and gently slide it toward the volume rocker to free the board from adhesive. Be very careful not to bend the board too much or scrape it against the top of the rear case. Insert a spudger under the GPS connector end of the upper component board and lift it up off of its adhesive. On reassembly, fit the cable back into the socket as you replace the upper component board. Lift the end of the upper component board cable up off of the adhesive holding it to the rear case.

To remove the upper component board you will be pulling gently on its cable while lifting it up enough to clear the battery, but not high enough to scrape against the rear case. Go slowly and carefully. Pull the board up and out of the space between the battery and the rear case bezel. On reassembly, you'll want to reconnect the GPS antenna cable at this point.

Use tweezers and work carefully. Peel the tape covering the button cable connector off of the upper component board. Lift the button cable connector straight up off of its connector on the upper component board. If your replacement part comes with the metal button brackets attached, you can skip the following steps. Use the point of the opening pick to peel the mechanical volume buttons up from the bracket. I did not complete this guide. I would rather gouge my eyes out with a wooden spoon than ever have to do this repair again!

It was the hardest repair I have ever done!! I will never rip another power button flex cable again. Your guide is really well done! I was able to retrieve the broken cable without trouble on my first try, but putting it back together was the most annoying part. Select a Language: Help Translate iFixit. Sam Lionheart and 3 other contributors.

Difficulty Very difficult.

Steps Time Required 2 - 4 hours. Sections 5. Flags 0. Introduction Use this guide to replace the volume and power button cable assembly in your iPad 2 GSM. Tools Buy these tools. Parts Buy these parts. Step 1 iOpener Heating. Add Comment. Step 2. Step 3. Step 4 Front Panel. Step 5.

iPad 2 GSM Volume and Power Button Cable Replacement

Tools used on this step:. Step 6. Step 7. One comment. Step 8. Step 9. Step Add a comment. Step 27 LCD. Step 29 Rear Camera.
